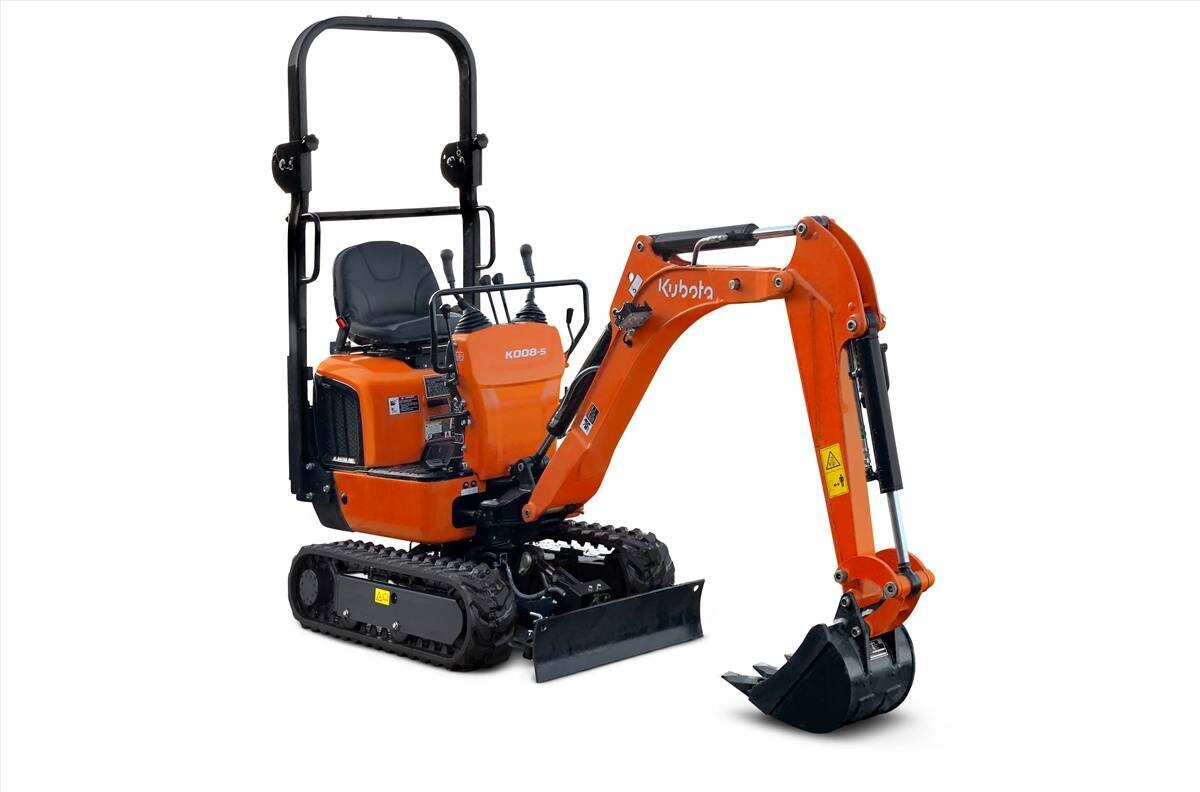

KUBOTA EXCAVATOR - ULTRA COMPACT K 008-3

KUBOTA ULTRA-COMPACT EXCAVATOR

Available Bucket Sizes: 9", 12" and 16"

Dimensions
Length	9 ft. (2,750 mm)
Height	7 ft. 4 in. (2,230 mm)
Width	2 ft. 10 in. (860 mm) / 2 ft. 4 in. (700 mm)
Weight	2,200 lbs. (1,000 kgf) including 175 lbs. operator's weight
Ground Clearance	5.9 in. (150 mm)
Fuel Tank Capacity	3.17 gal. (12 l

Drivetrain
Track Length	4 ft. (1,230 mm)
Track Width	7.1 in. (180 mm)




Engine
Engine Make	Kubota
Engine Model	D722-E4
Gross Horsepower	10.3 hp (7.7 kW) @ 2,050 rpm
Net Horsepower	10.1 hp (7.5 kW) @ 2,050 rpm
Displacement	44 ci
Fuel Type	Diesel

Hydraulics
Std Pump Flow	5.55 gpm (21 l/min.)
Opt Pump Flow	5.55 gpm (21 l/min.)

Operational
Travel Speed Forward	1.2 - 2.5 mph (2 - 4 km/h)
Arm Force	Breakout: 1,010 lbs. (460 kgf)
Dig Depth	Vertical: 4 ft. 6 in. (1,375 mm)
Blade Height	7.9 in. (200 mm)
Blade Width	2 ft. 4 in. (700 mm) / 2 ft. 10 in. (860 mm)
Bucket Breakout Force	2,200 lbs. (1,000 kgf)
Boom Swing Radius Left	55°
Boom Swing Radius Right	60°
